Φ2.3 9m Domestic Waste Treatment Rotary Kiln System
We can design as per your requirements if you provide us the capacity or the size, we will calculate and choose one right type for you. The rotary kiln must be in good quality,because the rotary kiln shall be running for 24 hours. And once stop, it need three days to restart, time is money, So please choose Pengfei, because we have long history and much more experience on manufacturing and improving the rotary kiln.
The size of rotary kiln
| | Application | | Quick lime plant |
| | Equipment name | | Ф3.2×50m rotary kiln |
| 1. | Technical parameter | | |
| | Capacity | t/h | 300tpd |
| | Slope | % | 3.5 |
| | Supporting No. | | 2pier |
| | Speed | | |
| | Main speed | r/min | 0.3～3.0 |
| | Drive type | | Single drive |
| | Main drive motor | | |
| | Type(VFD Motor) | | ZSN4-280-091B |
| | Power | kW | 110kW |
| | Rated speed | r/min | 1000 |
| | Armature voltage | | 440V |
| | Exciting voltage | | 180V |
| | Speed adjusting range | r/min | 100-1000 |
| | Protection grade | | IP54 |
| | Auxiliary motor | | |
| | Type: | | Y160M-4B |
| | Power | kW | 11 |
| | Rated speed | r/min | 1460r/min |
| | Rated voltage | V | 110V |
| | Rated speed | r/min | 0-2000r/min |
| | | | |
| | Auxiliary gear box | | |
| | Type | | ZSY160-31.5 |
| | Rated power | | |
| | Main drive gear box | | |
| | Type | | YNS1110-63VIBL |
| | Total center distance | | 1110 |
| | Total nominal speed ratio | mm | 63 |
| 2. | Main part | | |
| | Shell | pcs | Q235-B |
| | Material | | Q235-B or 20g |
| | Tyre | pcs | |
| | Material | | ZG310-570 |
| | Hardness | | >180 |
| | Qty | | 2Pcs |
| | Girth gear | pcs | |
| | Material | | ZG310-570 |
| | Hardness | | HB=200 |
| | Qty | | 1Pcs |
| | Sealing at kiln inlet | | Steel sealing |
| | Qty | set | 1 |
| | Sealing at kiln outlet | | Steel sealing |
| | Qty | set | 1 |
| | Supporting roller part | | |
| | Supporting roller | | ZG340-640 |
| | Hardness | | HB>190 |
| | Qty | Pcs | 2 |
| | Supporting roller shaft | | |
| | Material | | 45# |
| | Hardness | | HRC45-48 |
| | Qty | | 2Pcs |
| | Thrust roller supporting unit | | |
| | Qty | set | 1 |
| | Supporting roller | | |
| | Supporting roller shaft | | |
| | Thrust roller | | |
| | Material | | ZG340-640 |
| | Hardness | | HB>190 |
| | Bearing base of thrust supporting roller | | |
| | Qty | | 1pcs |
| | Oil pump station and control panel | | |
| | Type | | NC-14 |
| | Qty | pcs | 1 |
| | Pinion part | | |
| | Pinion | | |
| | Material | | 35SiMn |
| | Hardness | | HB>207-269 |
| | Qty | pcs | 1 |
| | Pinion shaft | | |
| | Material | | 35CrMo |
| | Hardness | | HB>217-265 |
| | Qty | pcs | 1 |
Our company is the biggest manufacture base for the rotary kiln we have manufactured the vertical kiln from 1983, and rotary kiln from 1994,till now we have already manufactured for 26 years.Our chairman Mr Wang Jiaan make a lot of investment on arranging technical team to research, cooperate with the famous research institute and college for many years to improve the technology of our rotary kiln. From the wet process to dry process, from size around 2 meters to 6 meters.from cement plant other industry filed. From two piers to four piers.Now our rotary kiln are the leaders for rotary kiln in cement plant with capacity from 300tpd,700tpd,800tpd,1000tpd,1200tpd,1500tpd,2000tpd,2500tpd,3000tpd,3500tpd,4000tpd,5000tpd, 8000tpd ,lime plant capacity from 300tpd to 1200tpd.300tpd,400tpd,600tpd,800tpd,1000tpd,1200tpd.Nickel ore plant from 50000tons 150000tons.our such rotary kiln with advanced technology and high automation level can increase the running rate 3-5%,production has been raised by 5-10%, and heat consumption has been reduced 15% down. Till now we have sold to more than 200 hundred clients in the domestic clients in such filed and more than 100 hundred clients in foreign countries. we also cooperate European countries for the rotary kiln manufacturing.

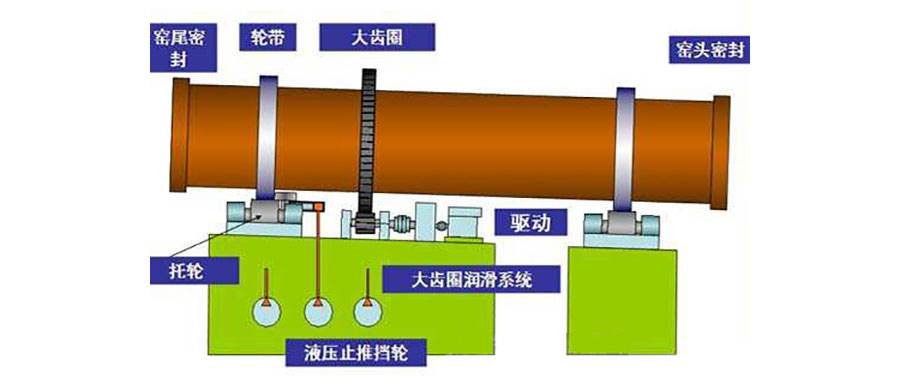

The structure of rotary kiln
